Terex|Finlay announces four new compact impactors


December 3, 2019
By Terex | Finlay

Topics

Dec. 3, 2019 – Terex Finlay announced their new range of compact impact crushers: IC-100, IC-100RS, IC-110 and IC-110RS. These versatile models will be a natural extension to current dealer hire fleets. For those dealers planning to grow and expand their revenues through developing hire fleets these are the ideal ‘starter models’.

Each of these models are now available to order with deliveries commencing from March, 2020. Contact a local dealer manager to receive an order form.

With the introductions of these exciting new models Terex Finlay will discontinue their current I-100 and I-100RS impact crusher models from the portfolio. They have limited availability to satisfy any potential new orders so if you are currently working on any potential deals for either the I-100 or I-100RS then please speak with your dealer manager soon. Terex Finlay will be unable to accept new orders for the I-100 and I-100RS impact crushers after 31st December, 2019.

All accepted orders must be despatched from the Omagh factory by 31st March, 2020.





IC-100 Impact Crusher
Compact design based around current I-100 chamber.
Rotor: Ø860 x 830mm (Ø34” x 33”).
Inlet opening: 860 x 610mm (34” x 24”).
Weight: 23,600kg (52,250lbs) with by-pass conveyor & twin pole magnet.
Hopper capacity: 2.6m³ (3.4yd³) with integrated pre-screen.
Main conveyor: 900mm (36”) full length belt with folding head section for transport.
Tier 3 / Stage IIIA: John Deere 6068 194kW (260hp).
Tier 4F / Stage IV: 205kW (275hp).
Stage V: Volvo 205kW (275hp).

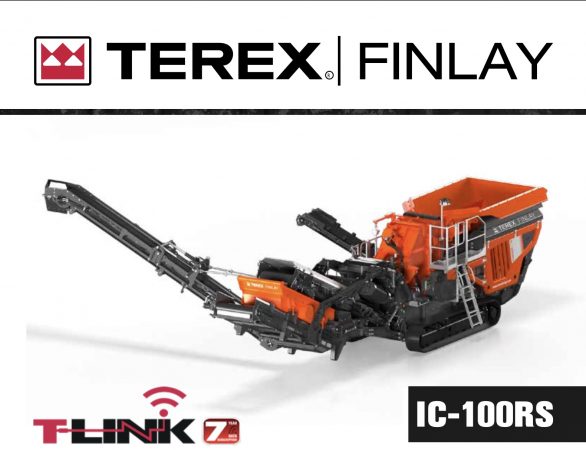

IC-100RS Impact Crusher
Compact design based around current I-100 chamber.
Rotor: Ø860 x 830mm (Ø34” x 33”).
Inlet opening: 860 x 610mm (34” x 24”).
Screenbox: 2.44m x 1.2m (8’ x 4’) single deck screen
Weight: 29,300kg* (64,595lbs*) *Constant speed engine with single pole magnet.
Hopper capacity: 2.6m³ (3.4yd³) hopper with integrated pre-screen.
Main conveyor: 900mm (36”) full length belt with folding head section for transport.
Tier 3 / Stage IIIA: John Deere 6068 194kW (260hp).
Tier 4F / Stage IV: Volvo 205kW (275hp).
Stage V: Volvo Engine Power: 205kW (275hp).





IC-110 Impact Crusher
New chamber based on I-120 chamber design.
Rotor: Ø1034 x 1000mm (Ø41.5” x 40”).
Inlet opening: 1030mm x 790mm (41” x 31”).
Weight: 29,000kgs (63,934lbs) including some options.
Hopper capacity: 3.3m³ (4.3yd³) with integrated pre-screen.
Main conveyor: 1000mm (40”) full length belt with folding head section for transport.
Tier 3 / Stage IIIA: Volvo 235kW (315hp).
Tier 4F / Stage IV: Volvo 235kW (315hp).
Stage V: Volvo 235kW (315hp).

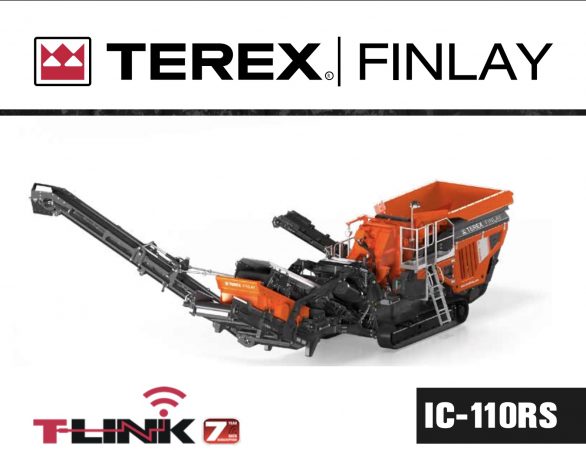

IC-110RS Impact Crusher
New chamber based on I-120 chamber design.
Rotor diameter: Ø1034 X 1000mm (Ø41.5” X 40”).
Inlet opening: 1030mm x 790mm (41” x 31”).
Screenbox: 2.74m x 1.5m (9’ x 5’) single deck screen.
Weight: 35,600kg (78,485lbs).
Hopper capacity: 3.3m³ (4.3yd³) with integrated pre-screen.
Main conveyor: 1000mm (40”) full length belt with folding head section for transport.
Tier 3 / Stage IIIA: Volvo 235kW (315hp).
Tier 4F / Stage IV: Volvo 235kW (315hp).
Stage V: Volvo 235kW (315hp).
