Terex MPS launches the WJ3042 and WC1150S

November 2, 2020  By Rock to Road

WC1150S Cone / Screen Plant.

Terex MPS introduced its new WJ3042 and WC1150S high-capacity, all-electric wheeled crushing systems. The systems are designed for quick set up and dismantling and ease of operation.

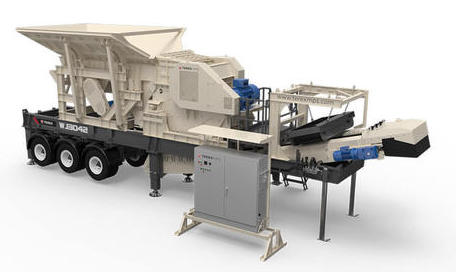

The Terex WJ3042 is a wheeled jaw crusher plant which incorporates the aggressive Terex JW42 jaw crusher and a heavy-duty vibrating grizzly feeder. The compact machine is designed to deliver optimum production in quarrying, mining, demolition and recycling applications.

The Terex WC1150S cone-screen plant is a high-performance, medium-sized wheeled crushing and screening system. At the heart of the plant is the 225kW (300hp) Terex TC1150 cone crusher with a modern, automated control system. Its special crushing action is said to provide excellent capacity, high reduction and good product cubicity for the production of high-quality aggregate and sub-base materials. A level sensor over the cone crusher regulates the feed to ensure the chamber is continually choke fed, thereby ensuring maximum production and manganese life, as well as optimal product shape. The large onboard 6ft x 20ft triple-deck screen allows for the production of sized products from a single plant.


The WJ3042 and WC1150S are available as stand-alone plants or as a multi-plant system with product conveyors for a complete crushing and screening solution. All plants and conveyors are designed to fit in standard containers for easy transport overseas or on the road. The entire system complete with conveyors can be transported in nine containers.

On-site, each assembled plant can be transported in a one-piece tow, whilst hydraulic screen lift and hydraulic support legs reduce the cranage and tools required for plant set-up and relocation.
