Catalyst system for asphalt mixing plants nominated for innovation award

September 8, 2022  By  Don Horne


The Benninghoven REVOC system reduces a large part of the total carbon emissions. This achieves a higher recycling rate and allows for more sustainable asphalt production.

The REVOC system has been nominated for the 2022 bauma Innovation Award in the “Climate Protection” category.

The system – developed by Benninghoven – is a technology for reducing the output of greenhouse gases from asphalt mixing plants. In addition to reducing CO2, it can reduce the total carbon emissions by as much as 50 per cent – an innovative recycling system can meet or even stay below the increasingly more stringent emissions limits in asphalt production.

Asphalt recycling as an important contribution to the circular economy

Conserving resources, environmental protection and economic efficiency are not mutually exclusive. More new roads are being refurbished than built, generating accordingly large volumes of reclaimed asphalt. At the same time, asphalt mixing plant owners are faced with the challenge of complying with the limit values for asphalt production that have become more stringent in many regions worldwide.

Advertisement

The requirements are increasingly moving towards using the largest possible amount of added recycling materials, not only with sustainability in mind. It is also economically viable because reclaimed asphalt is much cheaper than other aggregates.

Fewer emissions and higher recycling rates of up to 60%

Reclaimed asphalt can currently already be added to the production process using reliable cold and hot recycling technologies. This, however, results in higher total carbon emissions (Ctot, volatile organic compounds – VOC). When reclaimed asphalt is heated, part of the Ctot concentration volatilizes from the bitumen in the recycling material.

Ctot has a higher greenhouse potential than CO2 and is hazardous to health in higher concentrations. The higher the recycling rate, however, the less fresh bitumen is required and the lower the carbon footprint. Increasing the recycling material from 40 % to 60 % alone can save approx. 440 t of CO2 per year.*

In the past, it was practically impossible to resolve the conflicting objectives of meeting high recycling rates for reclaimed asphalt while protecting the climate. Thanks to the powerful REVOC system, the two aspects can now be consolidated: reducing Ctot emissions by up to 50 % and implementing higher recycling rates of up to 60 per cent.

Energy-efficient thermal processing

Firstly, the REVOC system extracts the emissions directly where they are generated, primarily from the mixer in the asphalt mixing plant, where heated mineral, recycling material and bitumen come together to be mixed into fresh asphalt. The generated vapours have increased Ctot concentrations and are moved to the REVOC system for thermal processing.

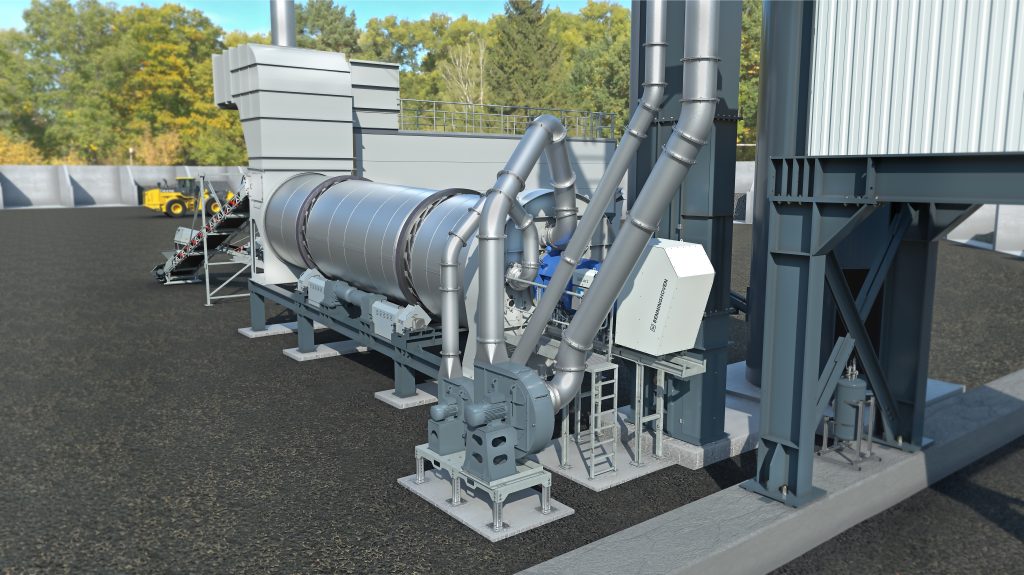

The Benninghoven REVOC system can easily be retrofitted on any asphalt mixing plant to upgrade existing plants to the state of the art.

The REVOC system ensures a high level of energy efficiency by using the energy that is generated for drying and heating the virgin mineral (primary function) for thermal processing of the total carbons (secondary function). Use of the system therefore not only reduces energy consumption significantly, but – most importantly – lowers Ctot emission by as much as 50 per cent. Valid data gained from multiple REVOC systems show that the environmentally friendly technology is already proving successful in practical application.

Securing the future of mixing plant sites

The REVOC system is also a practical solution with which existing mixing plants can meet the stricter requirements set out by state authorities.

The more stringent limits of < 50 mg/m3 in this regulation can be met reliably with the REVOC system. The system can be easily retrofitted on any asphalt mixing plant to upgrade existing plants to the state of the art. This is a key factor for the plant owner, also with respect to securing the future of the plant site, as the life cycle of asphalt mixing plants is between 20 and 30 years.

*(annual production of 100,000 t, coal dust as fuel)
